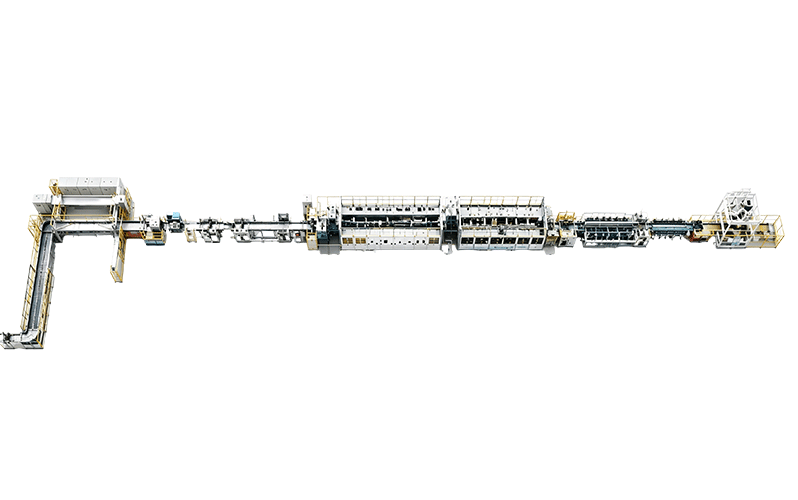

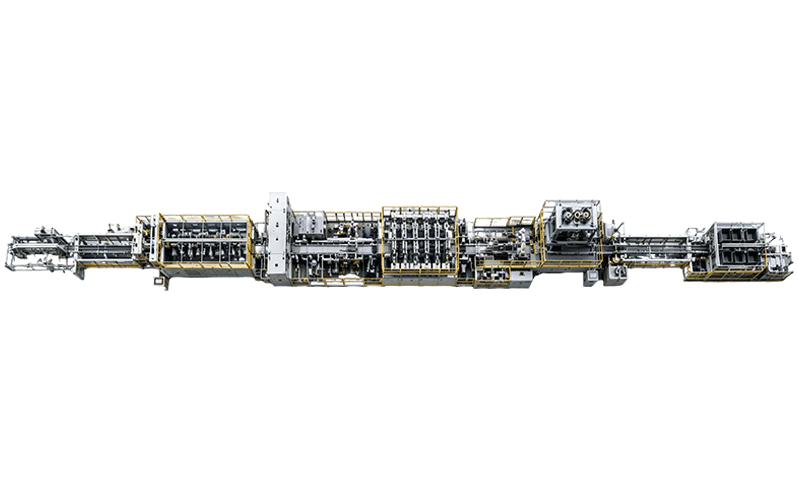

Main Assembly Line for Residential Air Conditioner Outdoor Units

Equipment Introduction：This equipment is mainly used for the assembly and production of residential air conditioner outdoor units.

Product Inquiry：139-1263-9694
Message
Key technical parameters
Product Dimensions 2-3HP Commercial Air Conditioning Outdoor Unit
Tact Time 25s
Product Logistics Method Pallet Carrier
Vacuum Filling 16 stations, bilateral manual operation, static vacuum filling, automatic material handling
Electrical Assembly Section Chain Plate Conveyor Line, bilateral manual operation, automatic material handling
Performance Inspection 16 stations, static performance testing, automatic material handling
Application scenario
Assembly and production of 2-3P commercial air conditioner outdoor units. The entire line covers raw material feeding through to finished product warehousing, integrating a variety of automated equipment. The production line features high efficiency and fast cycle speed, with a 25-second takt time.
