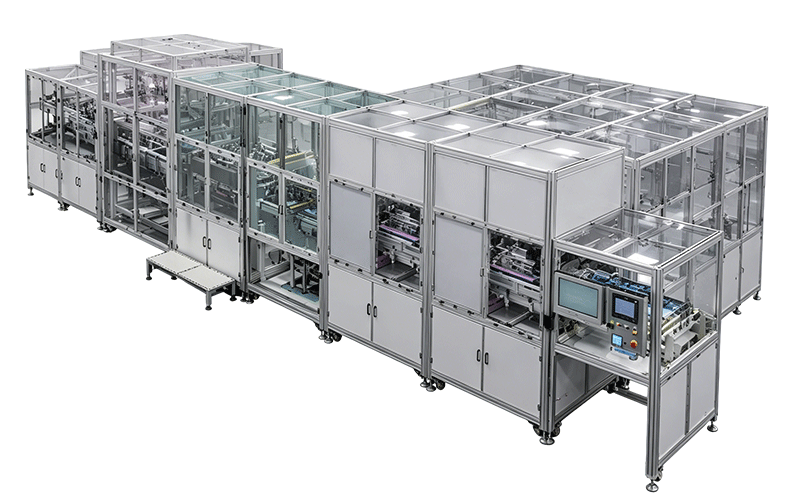

Polarizer Automatic Optical Inspection (AOI) Machine

Equipment Introduction：This equipment is mainly used to detect defects such as foreign particles, bubbles, fibers and residual glue between polarizers and panels after TFT or CF lamination.

Product Inquiry：139-1263-9694
Message
Key technical parameters
Product Size 220~430
Tact Time 14S
Foreign Matter Defects ≥30μm
Visual Defects ≥100μm
Manual Flip Inspection Area 800Kg/㎡
Assembly Line Area 500Kg/㎡
Application scenario
This project is applicable to panels with polarizer thickness of 0.1~0.5 mm and panel substrate thickness of 0.8~2.2 mm, enabling full dead-angle-free inspection within the panel terminal area.
